CSU is an
immune-mediated
inflammatory
skin disease1

The pathophysiology of CSU is not completely clear, but mast cells are
central; other immune cells are also involved, eg, Th1 and Th2 cells,
basophils, eosinophils, neutrophils, and monocytes1-4

Basophils
Th2 cells
Eosinophils
Mast cells

CSU pathophysiology involves a
complex interplay among
multiple immune cells,
immune mediators, and cytokines,
eg, IgE, histamine, IL-4, IL-13,
IL-5, and IL-311,4-7

IgE
Histamine and other
immune mediators
IL-4
IL-13
IL-5
IL-31

Mast cells are central to CSU pathophysiology, and work with key
elements of type 2 signaling including IL-4 and IL-131,3

Mast cell
Basophil
IgE
IgG
IgM
Histamine
and other
immune mediators
Eosinophil
Th2 cell
Self-antigen
FcεRI
Primary/secondary
effectsc
Explore the details

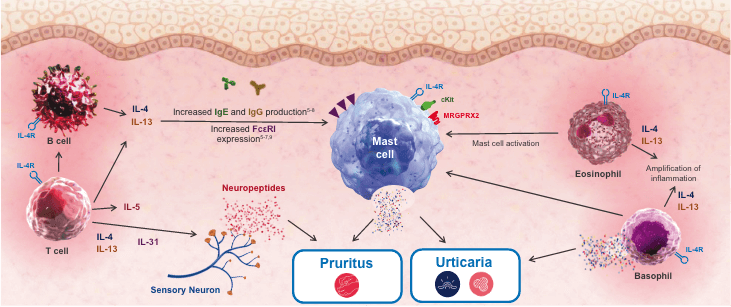

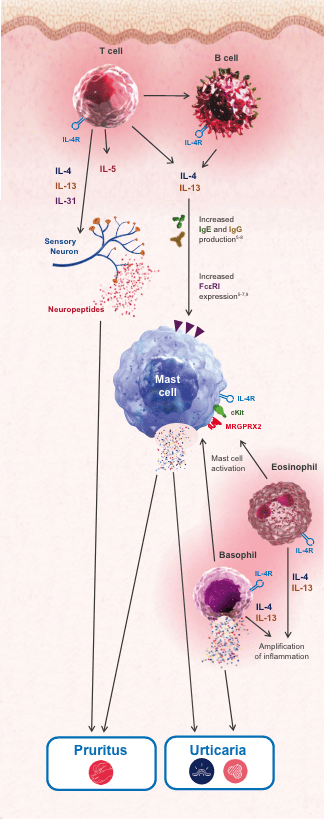

A positive feedback loop is created as more IL-4 is produced,
promoting Th2 cell production and type 2 signaling3,9,13

IL-4 promotes the differentiation of Th0 cells into Th2 cells. These Th2 cells then proliferate in
response to IL-4 and produce more IL-4 and other type 2 cytokines, in a positive feedback loop4,9,11

Type 2 cytokines promote B-cell Ig isotype class switching and prime the mast
cells and basophils for activation9,13

Many immune cell types, including basophils, produce
IL-4 and IL-13, which drive B-cell Ig isotype class
switching, leading to IgE/IgG production and IgE-
dependent and independent activation of mast cells1,3,13



IL-4 and IL-13 increase IgE
receptor FcεRI expression,
priming mast cells and basophils
for activation3,9,13

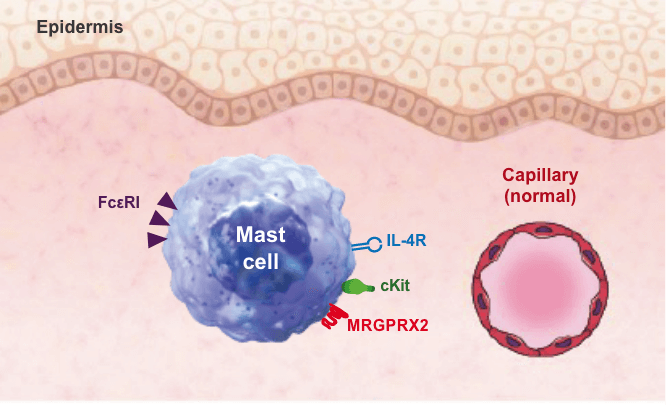

IL-4 helps drive mast cell activation, leading to the production of type 2 cytokines13,18

IL-4 and IL-13 help drive the activation of mast cells. Upon activation, skin mast cells secrete IL-4 and
IL-13, among other immune mediators, further contributing to type 2 inflammation13,18

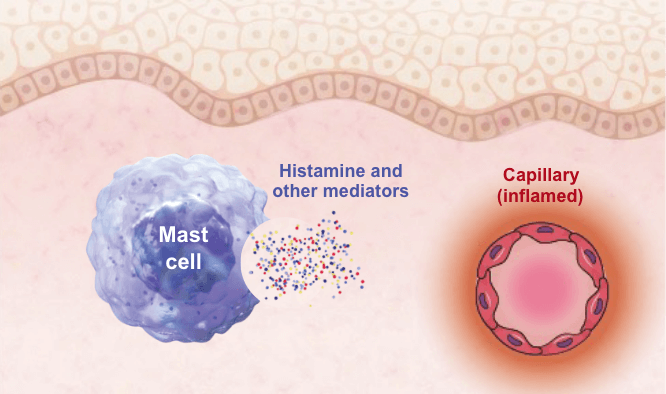

Mast cell activation leads to the release of histamine and other immune mediators4

Mast cell activation can be IgE-dependent or independent8

Mast cell
FcεRI
IgG
Self-antigen
Histamine
and other
immune
mediators
IgE
IgM
Mast cell
FcεRI
IgG
IgM
Histamine
and other
immune
mediators
IgE
Self-antigen

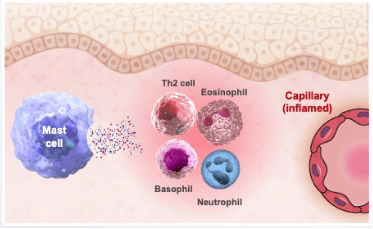

Mast cell and basophil degranulation lead to the release of histamine and other
immune mediators that drive many CSU disease features1,8,9

Basophil
Mast cell
Histamine and other
immune mediators
  • Histamine and other immune mediators cause vasodilation,
    inducing vascular permeability, and promoting plasma extravasation and skin homing of immune cells contributing to itch and edema1,5
  • In addition, IL-4 and IL-13 along with other cytokines such as IL-5 and IL-31 may also contribute to these disease features1,5,7,13

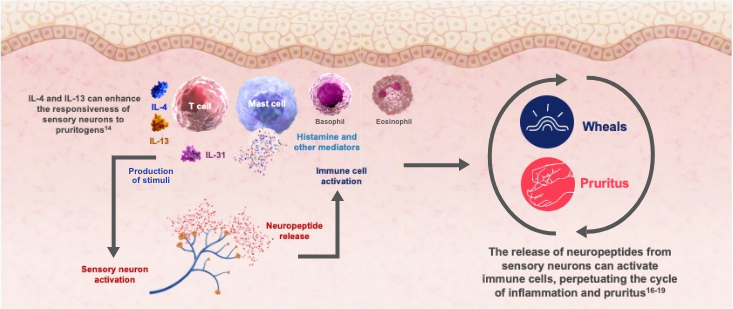

    • For example, IL-4 and IL-13 sensitize nerve cells to pruritogens, such as IL-31 and histamine7,17
    • IL-4, IL-5 and IL-13 collectively help with eosinophil trafficking5
Although CSU is considered a
mast cell-centric disease, type 2
inflammation may play a key
role at multiple levels sustaining
the disease chronicity1

CSU, chronic spontaneous urticaria.

a IL-4 and/or IL-13 are also produced by basophils, Th2 cells, and other immune cells.
b IL-4 and/or IL-13 signaling leads to B-cell class switching, IgE production, and increased FcεRI expression.8
c Mediated via both primary and secondary effects, including B-cell class switching, immune cell trafficking, cellular infiltration
and/or release of immune mediators via, eg, IgE/IgG binding (such as basophils and mast cells).
